FX-1 Advanced Fermentation Controller
TankNET® FX-1

Advanced Fermentation Controller

Bring out the best in every fermentation with confidence, insight and precision.

Applications:

  • Real-time insight into fermentation progress for informed decisions and fewer surprises
  • Continuous Brix tracking to spot slowing or stalled fermentations
  • Redox monitoring to guide aeration decisions
  • Pump-overs and aeration tailored to each tank’s fermentation conditions
Request Pricing

Key Features

Continuous Brix Tracking

Follow fermentation progress through density measurements derived from differential pressure

Redox Monitoring

Track ORP to understand changing fermentation conditions and inform aeration

Responsive Fermentation Control

Drive pump-over and Venturi automation using Brix, temperature and Redox data

Flexible Sensor Connections

Support temperature and 4–20 mA inputs, plus powered, isolated ports for IO-Link and ORP sensors

At-Tank Touchscreen

View measurements, follow trends and adjust settings through one clear interface

Connected Cellar Visibility

Monitor and manage fermentations through TankNET® cloud or on-premises software

Overview

The FX-1 brings temperature, density-derived Brix and Redox measurements together to give winemakers a clearer picture of each fermentation.

Continuous visibility helps your team recognize changes sooner and adapt temperature, pump-overs and aeration as fermentation progresses.

With a touchscreen at the tank and access through TankNET® software, those insights are available wherever your team works.

Why Choose It

  • Adapts to each fermentation
  • Insight between manual checks
  • Fewer surprises
Book a demo

Specifications

Parameter Specification
Model FX-1
Operating temperature 0 °C to 50 °C
Input voltage 18–230 VAC, 50/60 Hz
Cool relay Form C, fused at 2 A
Heat relay Form C, fused at 2 A
Pump run relay Form C, fused at 2 A
Venturi relay Form C, fused at 2 A
Analog inputs 2 inputs for temperature or 4–20 mA sensors; 24 VDC sensor power supplied
Smart sensor ports 2 × M12 female, A-coded; isolated interfaces for IO-Link and ORP sensors supporting Brix and Redox monitoring; 24 VDC sensor power supplied
Enclosure dimensions 195 × 115 × 62 mm

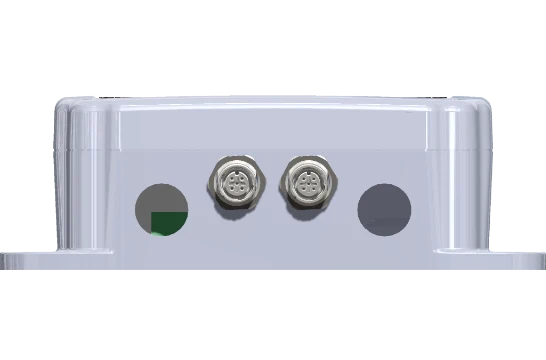

Ports / entries 2 × ½-inch NPT entries; 2 × M12 female, A-coded ports
Designed to scale with the TankNET ecosystem

* Specifications subject to change without notice
